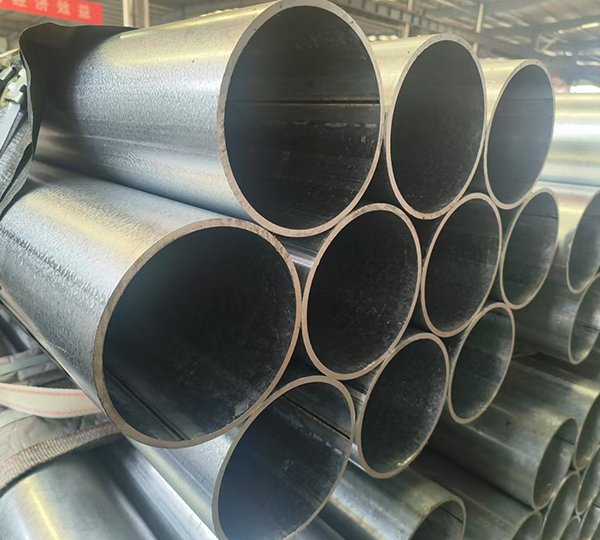

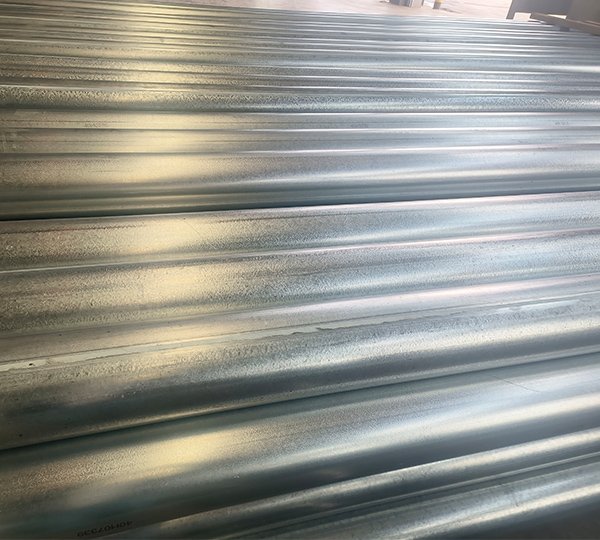

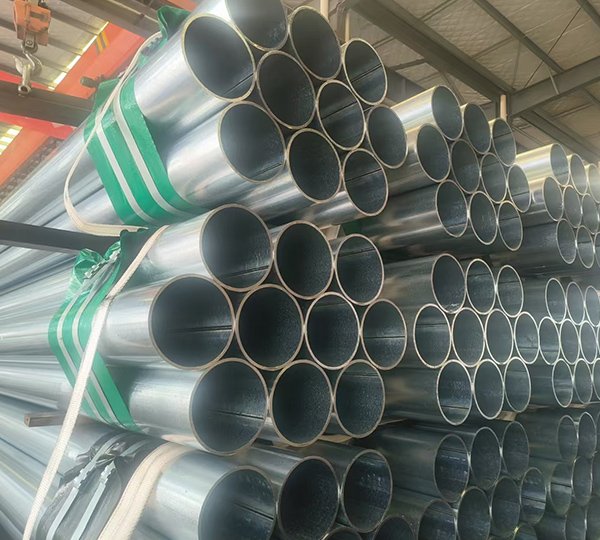

EN10219 Cold Formed Welded Structural Hollow Sections
EN10219 welded steel tube can be round, square, rectangular or other cross-sections, with high strength, excellent rigidity, outstanding corrosion resistance and other characteristics.
This type of tube is commonly used in various steel frames and structural parts.
HAOTAN can offer many steel grades and sizes of EN10219 welded hollow sections with good quality and price.
EN10219 Tube Specifications
• Procedure: welded
• Dimensions: round 10.3mm – 170mm; square 10mm-125mm; rectangle 10x20mm--100x200mm
• Thickness: 1.0mm – 6.0mm
• Unit Length: 1 – 12 metres
• Steel Grade: S235JRH, S275J0H, S275J2H, S355J0H, S355J2H, S355K2H
• End Shape: Beveled end, plain end, vanished, or adding plastic caps, as per customer's requirements
• Pipe Packing: In bundles, Plastic film full length wrap
Chemical Composition
| Steel grade | Type of de- oxidationa | %by mass,maximum | ||||||
| Steel name | Steel number | C | Si | Mn | P | S | Nb | |
| S235JRH | 1.0039 | FF | 17 | — | 140 | 40 | 40 | 0.009 |
| S275J0H | 1.0149 | FF | 20 | — | 150 | 35 | 35 | 9 |
| S275J2H | 1.0138 | FF | 20 | — | 150 | 30 | 30 | — |
| S355J0H | 1.0547 | FF | 22 | 55 | 160 | 35 | 35 | 9 |
| S355J2H | 1.0576 | FF | 22 | 55 | 160 | 30 | 30 | — |
| S355K2H | 1.0512 | FF | 22 | 55 | 160 | 30 | 30 | — |
| a The deoxidation method is designated as follows: FF:Fuly kiled steel containing nitrogen binding elementsin amounts suficien to bind avalable nitrogen(e.g.min.0.020%totalAor0.015%soluble A). b The maximum value ornitroen does not appyif the chemical composifion shows a minimum total A content of 0.020%with a minimum AINrato of2:1,orif suficient other N-binding elements are present.The N-binding elements shallbe recorded in the Inspecion Document | ||||||||
Mechanical Properties of Non-alloy Steel Hollow Sections
| Steel grade | Minimum yield strength RH MPa | Tensile strength Rm MPa | Minimum elongation Ad % | Minimum impact energy KVe J | |||||
| Steel name | Steel number | ||||||||
| Specified thickness mm | Specified thickness mm | Specified thickness mm | at test temperature of | ||||||
| ≤16 | >16≤40 | <3 | ≥3≤40 | ≤40 | -20℃ | 0℃ | 20 ℃ | ||
| S235JRH | 1.0039 | 235 | 225 | 360-510 | 360-510 | 24b | 27 | ||
| S275J0H | 1.0149 | 275 | 265 | 430-580 | 410-560 | 20 | 27 | ||
| S275J2H | 1.0138 | 27 | |||||||
| S355J0H | 1.0547 | 355 | 345 | 510-680 | 470-630 | 20 | 27 | ||
| S355J2H | 1.0576 | 27 | |||||||
| S355K2H | 1.0512 | 40 | |||||||
| a The impact properties are verified only when Option 1.3 is specified. For thicknesses>3mm and section sizes D/T<15(round)and(B+H)/2T<12,5 (square and rectangular)the minimum elongation is reduced by 2.For thicknesses≤3mm the minimum value for elongation is 17%. e For section sizes D/T<15(circular)and(B+H)/2T<12,5(square and rectangular)the minimum elongation is reduced by 2. d For thicknesses<3mm see 9.2.2. e For impact properties for reduced section test pieces see 6.7.2. f This value corresponds to 27J at-30℃(see EN 1993-1-1). | |||||||||

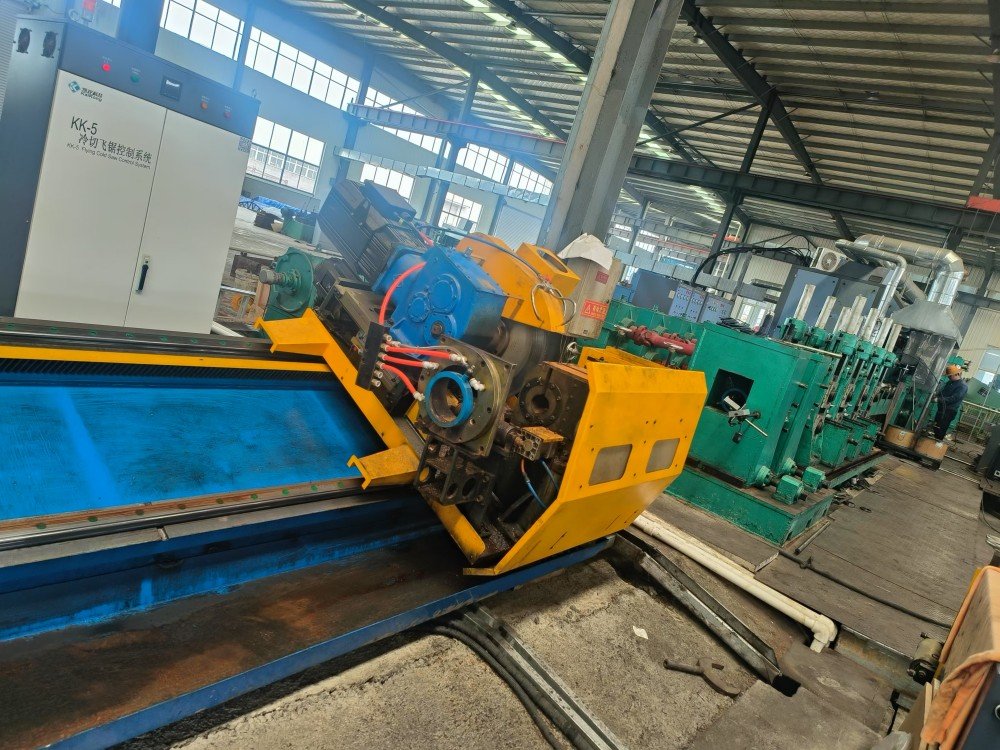

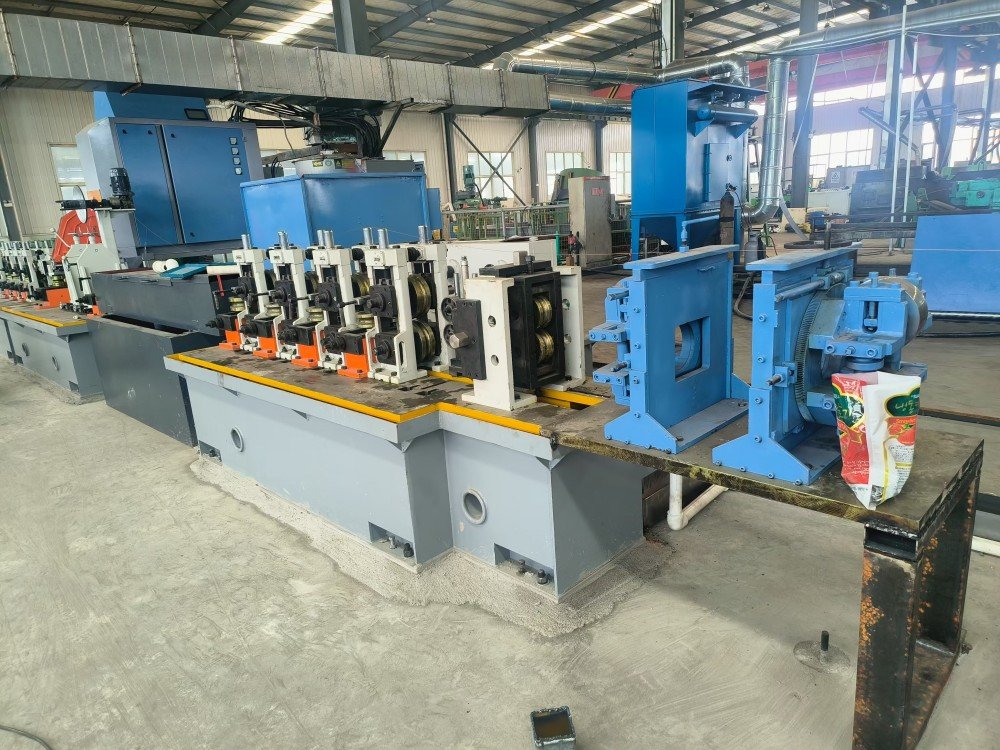

HAOTAN Precision Welding Tube Production Line
