BS1387 Galvanized Steel Pipe
BS 1387 is a British standard. It specifies requirements for galvanized steel pipes. These pipes are used mainly in construction and engineering.
Carbon steel. Steel is galvanized by applying a zinc coating through a hot dip process.
BS 1387 pipes are mainly used in construction and engineering projects. The main applications are in piping systems, building structures, general engineering, etc.
Nominal Pipe Size Range: DN8 to DN150, with three thicknesses to choose from: thin, medium and thick.
Specification Of BS1387
| STANDARD | BS1387 |
| Steel Grade | Carbon Steel |
| Manufacture | Tube: Welded |
| Type: | Seamless or Welded |
| Chemical composition | C (max): 0.20% |
| Mn (max): 1.20% | |
| P (max): 0.045% | |
| S (max): 0.045% | |
| Tensile strength, Rm | 320-460 N/mm2 |
| Yield strength, Re(min) | 195 N/mm2 |
| Elongation on gauge length | 0.2 |
| Light tube | 1/4”-4”, DN8-DN100 |
| Medium tube | 1/4”-6”, DN8-DN150 |
| Heavy tube | 1/4”-6”, DN8-DN150 |
| Light tube | 1.8mm-3.6mm |
| Medium tube | 2.3mm-5.0mm |
| Heavy tube | 2.9mm-5.4mm |
| Random Length | 4m-7m |
| Mill Length | ≥6.4m |
| Pipe Length | Approximate Length |
| On Thickness | Exact Length |
| Light tube: -8% | |
| Medium tube: -10% | |
| Heavy tube: -10% |
Chemical Requirement&Mechanical Requirement
| Chemical Composition At Room Temperature | ||||||
| Chemical Composition | Mechanical Properties | |||||
| C | Mn | P | S | Tensile | Yield | Elongation On Gauge Length |
| max. | Max. | Max. | Max. | Strength, Rm | Strength Re(min.) | Lo=5.65 √So A (min.) |
| % | % | % | % | N/mm2 | N/mm2 | % |
| 0.2 | 1.2 | 0.045 | 0.045 | 320 to 460 | 195 | 20 |

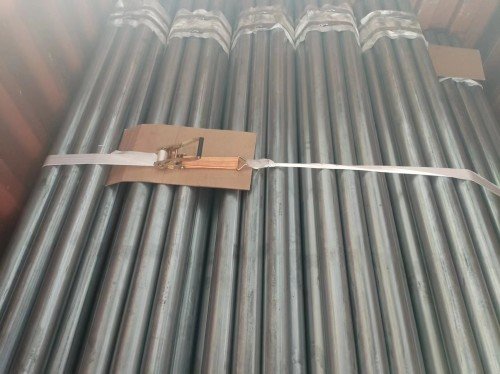

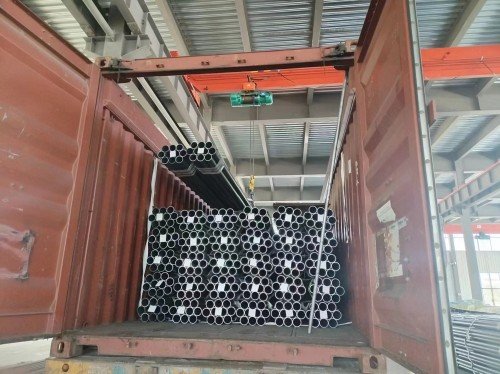

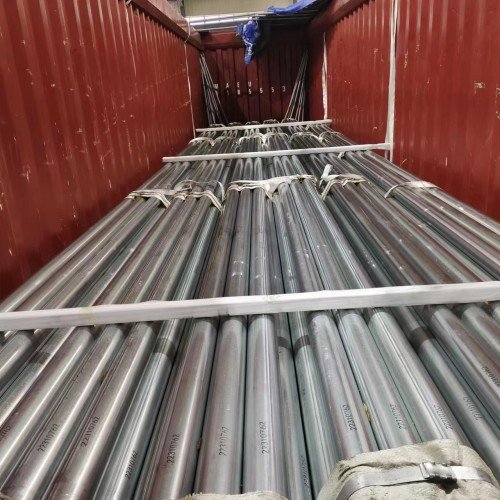

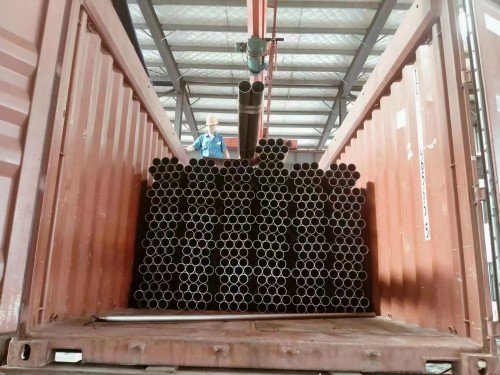

Loading Process
