ASTM A513 Alloy Steel Mechanical Tubing
ASTM A513 covers electric-resistance-welded carbon and alloy steel tubing for use as mechanical tubing.
This covers mechanical tubing made from hot- or cold-rolled steel.
This specification covers round,square,rectangular,and special shape tubing
When you choose our ASTM A513 mechanical tubing, you’re investing in quality,efficiency, and a product that stands the test of time.
Specifications
Our ASTM A513 tubing come with a comprehensive specification, steel grades from low carbon to alloy steels.
• Procedure: welding
• Dimensions: O.D.: 10 mm – 120 mm
• Thickness: 1.0mm – 20mm
• Steel Grade: 1008,1020,1013,4140,5130 etc...
• Surface Coating: Black, Red, Primer, Hot Dip Galvanizing
• End Type: Square cut, Bevelled, Grooved

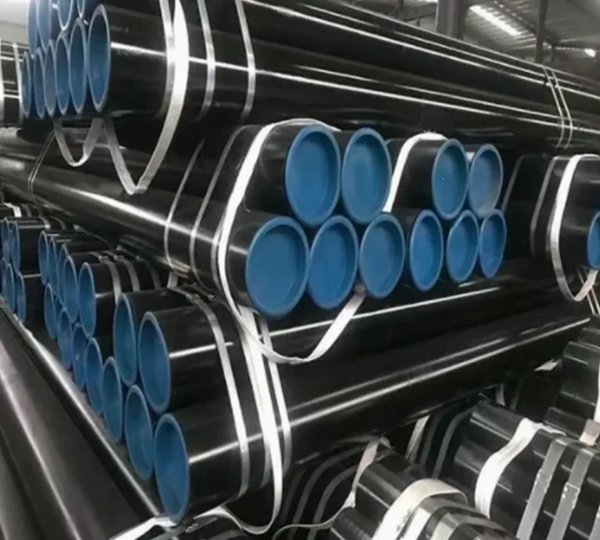

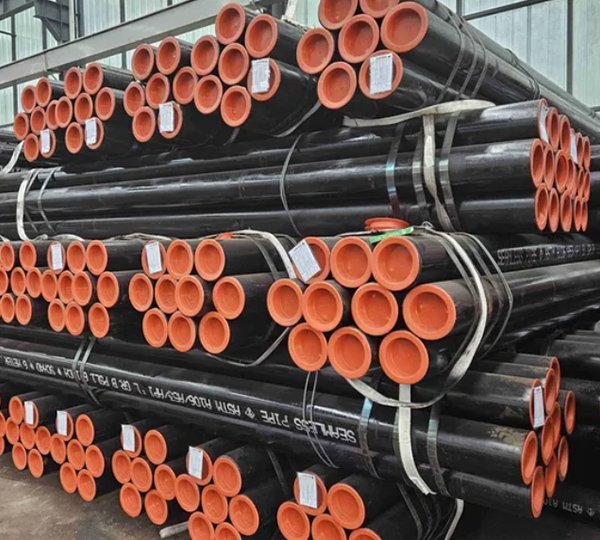

• Pipe Packing: In bundles, Plastic film full length wrap
Why Choose HAOTAN?
• Founded in 2011, Haotan is a leading force in China’s steel tube manufacturing and export. We promise to give you the best quality at the lowest price. For any inquiries regarding the purchase of steel tubes, feel free to reach out to us.
• Full Range Of Steel Pipes: HAOTAN provides a full range of steel tubes. This includes semaless tube, ERW pipe, steel hollow section, line pipe, coated pipe, honed tube and more.
• Standard Certifications: We hold international certifications, including ISO9001, IATF16949 and many letters patents, the tube products are manufactured following ASTM, DIN, EN, BS,JISG standards.
• Worry-free After-sales Service: We provide professional selling team. It handles returns and exchanges on time if there are quality problems.
Chemical Requirement
| Grade | Carbon | Manganese | Phosphorus (max) | Sulfur(max) | Silicon | Chromiunm | Molybdenum |
| 1008 | 0.10 max | 0.50 max | 0.035 | 0.035 | / | / | / |
| 1010 | 0.08-0.13 | 0.3-0.6 | 0.035 | 0.035 | / | / | / |
| 1015 | 0.12-0.14 | 0.3-0.6 | 0.035 | 0.035 | / | / | / |
| 1020 | 0.17-0.23 | 0.3-0.6 | 0.035 | 0.035 | / | / | / |
| 1030 | 0.27-0.34 | 0.3-0.9 | 0.035 | 0.035 | / | / | / |
| 1035 | 0.31-0.38 | 0.6-0.9 | 0.035 | 0.035 | / | / | / |
| 4130 | 0.28-0.33 | 0.3-0.11 | 0.035 | 0.040 | 0.15-0.35 | 0.80-1.10 | 0.15-0.25 |
| 4140 | 0.38-0.43 | 0.3-0.12 | 0.035 | 0.040 | 0.15-0.35 | 0.80-1.10 | 0.15-0.25 |
Hardness LImits and Tensile Properties for Round Tubing
| Grade | Yield | Ultimate | Elongation | RB | RB |
| strength | strength | in 2 in or 50mm % | min | max | |
| Ksi (Mpa) | Ksi (Mpa) | min | |||
| 1008 | 30(207) | 42(290) | 15 | 50 | |
| 1010 | 32(221) | 45(310) | 15 | 55 | |
| 1015 | 35(241) | 48(331) | 15 | 58 | |
| 1020 | 38(262) | 52(359) | 12 | 62 | |
| 1030 | 41(310) | 62(427) | 10 | 70 | |
| 1035 | 50(345) | 66(455) | 10 | 75 | |
| 4130 | 55(379) | 72(496) | 10 | 80 | |
| 4140 | 70(485) | 90(621) | 10 | 85 |
ASTM A513 Choose HAOTAN
• ASTM 513 tubes can also be used to manufacture boiler tubes, drill pipe, hydraulic pipe, gas pipe, oil pipe and other pipes and components to meet the diverse needs of different fields.
• In conclusion, ASTM 513 pipes, with their good mechanical properties, plasticity and corrosion resistance, are used in mechanical engineering, the automotive industry, fluid delivery systems and many other fields
ASTM A513 Alloy Steel Mechanical Tubing Applications

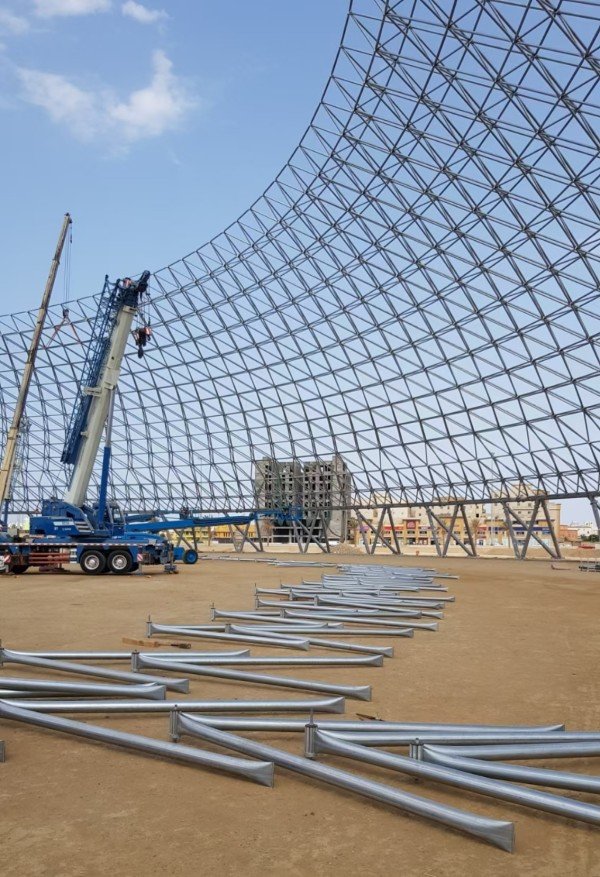

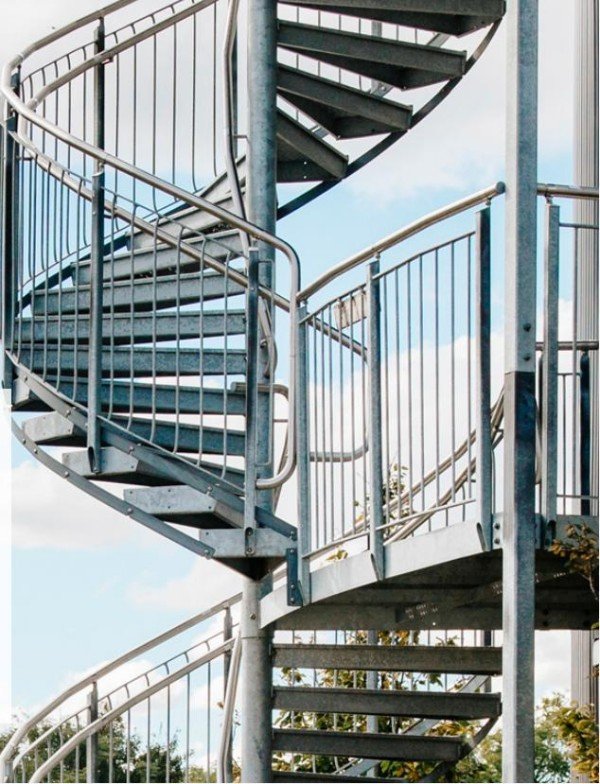

• Construction Industry: It is used as columns and braces in portal frame structures. It is also suitable for making scaffolding, stair railings, and decorative columns.
• Mechanical Manufacturing: It is used to make mechanical parts such as shafts and hydraulic cylinders.
• Transportation Industry: In the construction of vehicles and ships, CHS is used for making frames, guardrails, and some supporting structures.
• Furniture Manufacturing: It is often used in the production of furniture such as tables, chairs, and beds to make legs and frames.
