How Is A Seamless Steel Pipe Made?
Seamless pipe manufacturing commences with a solid steel billet. This chunk of metal goes through a heating process to reach an ideal malleability and temperature. Then, workers pierce and stretch it, transforming it into a hollow tube.
This tube continues to run through an elongation and rolling process to reduce its diameter. During this process, workers insert a mandrel to maage the pipe’s internal diameter. A series of heat treatments is in place to achieve the pipe’s mechanical properties.
After reaching the desired diameter and length, the pipe is cooled. The final touches include post-treatment, such as surface polishing and coating. Finally, the machine cuts the seamless pipe into its desired length.
Raw material selection
Seamless pipes are a durable option for various applications. However, to maximize their versatility, different materials must be available for processing. The selection of raw materials is key to achieving the ideal properties of the pipe, including tensile strength, yield strength, and hardness.
Here are the most common materials for seamless pipe manufacturing:
Carbon Steel: Common for general-purpose pipes, offering good strength and weldability. Suitable for lower-pressure applications like water, gas, and low-temperature systems.
Alloy Steel: Composed of alloying elements like chromium, nickel, and molybdenum. This composition provides higher strength, toughness, and resistance to heat and corrosion.
Stainless Steel: Guarantees exceptional corrosion resistance and toughness. It’s often for utility in corrosive environments, like marine and chemical processing.
Manufacturing Steps In Detail

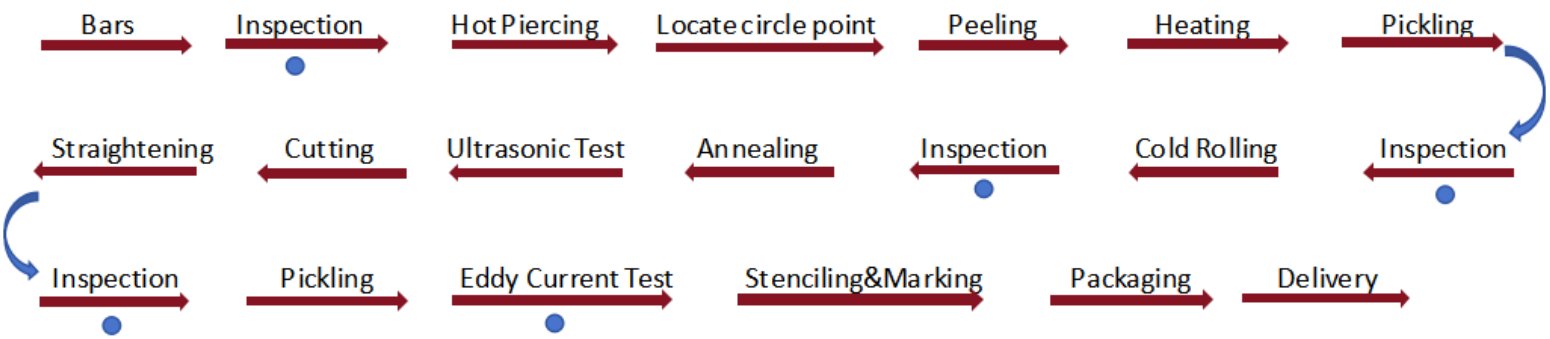

Here’s a more detailed guide to seamless pipe manufacturing.
Heating
The whole manufacturing process begins with the first heating process. Before you can dent the massive steel billet, you’ll have to run it through a furnace at around 1,200°Celsius. This extreme temperature softens the steel without melting it. What comes out of the furnace is a glowing hot steel that’s malleable enough for the next steps.
Extrusion
Industrial rotary tools pierce through the blazing billet to create a hollow shell. The elongation process passes the shell through a series of heavy-duty rollers. This then forms the pipe’s initial shape and size to work on.
Hole Expansion
While expanding the hollow tube, the workers will continue forcing a mandrel into it. This step is crucial to secure a smooth internal diameter and uniform wall thickness. Mandrel milling involves continuous rolling and stretching to the desired dimensions.
Cooling
After realizing the ideal size and dimensions, the pipe is gradually cooled. This cooling process happens in a controlled environment to avoid thermal stress. It also helps maintain the pipe’s integral mechanical properties. The complete cooling of the tube marks the solidification of the pipe in its final diameter.
Straightening
The prior steps do not guarantee complete success in crafting a perfect pipe. Even after cooling, there will be distortions and bends. Hence, the pipes still need to run through a straightening machine. Rollers or a straightening machine will apply controlled pressure to align the pipe. This ensures the final product is geometrically accurate and usable.
Post-Processing
Post-processing may include surface polishing, threading, or heat treatment for enhanced properties. Workers can also add a surface coating to guard against abrasion and corrosion. This step ensures the pipe meets specific application standards.
Quality Control
Quality control checks the pipe for dimensional accuracy, strength, and surface defects. Safe testing mechanisms, including X-ray and ultrasonic inspections, ensure flaw-free pipes. The pipe undergoes final inspection before shipment.
